Purpose:Audi A4 milege adjustment
Tool option:Tacho Pro 2008
Here you are:
Situation 1: Audi A4 Bosch crypted since 9/2001 soldering
use this board and sw 13 cable
Audi A4 Bosch crypted
• write down exactly the old kilometers
• remove the cluster and open it

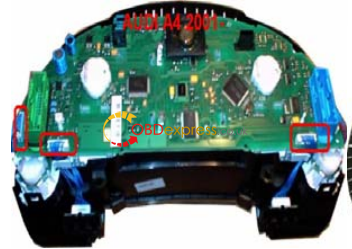

• solder the cables like in the picture
• connect the cable to port 3
• select the program Audi-A4-Motometer Bosch 9/01
• the Tacho Universal shows you „ 0 km“
• select „save“
• select „adjust km“
• enter the new value and press OK
• enter the old value and press OK
• the Tacho Universal now shows you the value that will be displayed in
the cluster
• if this value is too high or low, load the saved data and repeat the
procedure with an other new value
Situation 2:Model Audi A4 Bosch crypted since 09/01 clip
use this board and sw 13 clip
• write down exactly the old kilometers
• remove the cluster and open it
• pull off the speedo and rev needles
• look for the 8-pin eeprom 24c08
• connect the clip to port 3
• select the program Audi-A4-Motometer Bosch 9/01
• the Tacho Universal shows you „ 0 km“
• select „save“
• select „adjust km“
• enter the new value and press OK
• enter the old value and press OK
• the Tacho Universal now shows you the value that will be displayed in
the cluster
if this value is too high or low, load the saved data and repeat the procedure
with an other new value
