Change Mazda CX5 KM Use OBDSTAR F100(step guide and video)

Here is the instruction on how to use OBDSTAR F-100 to adjust the odometer for Mazda CX5.

 OBDSTAR F100 info:

1)CPU: ARM7
2)Operating Voltage: DC12V~18V
3)Operating Temperature: -20-60℃

4)Function: programming auto keys and smart keys of vehicles

odometer adjustment

5)Vehicle: Mazda and Ford (including the newest version of Mazda CX-3,CX-5,Mazda 2/3/6)

6)Special: no need pin code

TOOL:

1) Two keys

2) OBDSTAR F100  odometer adjustment tool

Vehicle model:

Mazda CX5

Satrt:

Connect F100 to the car.

The programmer tool starts, and press ENT

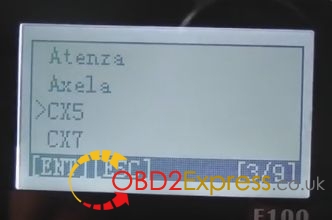

Select Mazda CX5

F100-odometer-adjustment-1 (1)

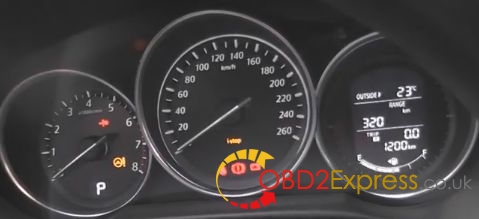

Switch ignition on



F100-odometer-adjustment-2 (1)

F100-odometer-adjustment-3 (1)

Before modify mileage. Please execute [ Data backup] function.

Press ENT, and communication.

Please turn off the ignition switch and then turn the ignition switch on.

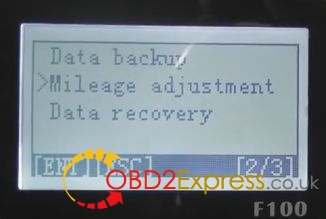

Select mileage adjustment, press ENT to continue, and ESC to return.

F100-odometer-adjustment-4 (1)

Note: if the number of kilometers with readout instrument shows the number of …

Communication…

Please turn off the ignition switch and then turn the ignition switch…

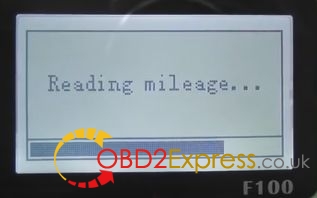

Then reading mileage…

F100-odometer-adjustment-5 (1)

Current mileage: 1200 KM

Please confirm the mileage correctly

Please input the mileage of the adjust-XXXXXX (eg:000210)

Input Value: XXXXXX(eg:000210)

Communication…

Please turn off the ignition switch and then turn the ignition switch.

F100-odometer-adjustment-6 (1)

Adjusting mileage…

Adjustment complete.

F100-odometer-adjustment-7 (1)

Video reference:
