Volvo S60 XC60 S80 Mileage Adjustment with CG100 III

How to use CG100 III to adjust mileage for Volvo S60 / XC60 / S80 – 9S12XHZ384.



  1. Dismantle the Volvo car meter.

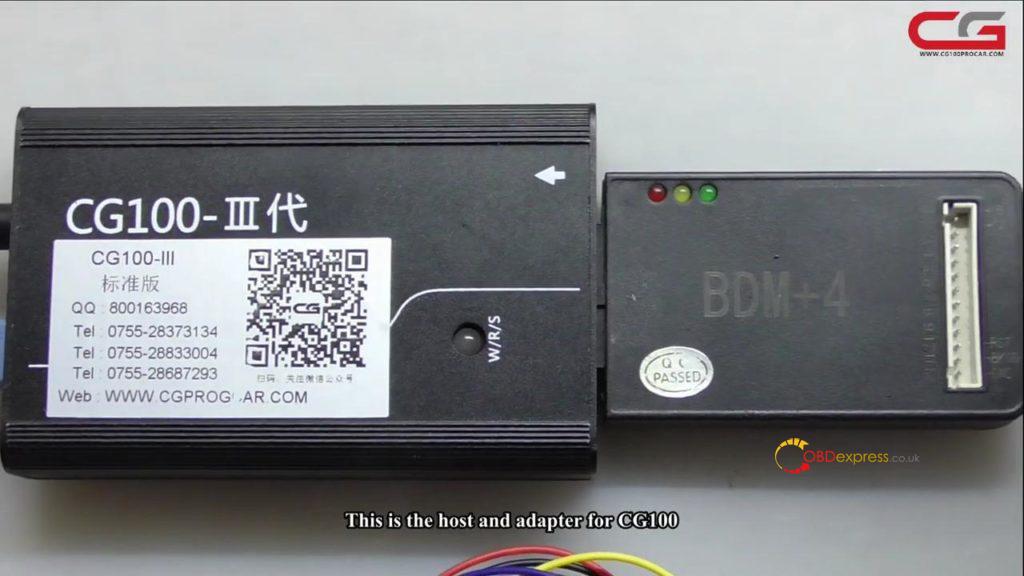

This is the host and adapter for CG100.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 01

Look at the Volvo car’s meter which is removed from the car.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 02

The sticker on the back will show the relevant information of this meter.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 03



12p welding wire for data transmission.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 04



Now we start to dismantle the meter.

Need to remove multiple screws and remove multiple parts.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 05 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 06 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 07 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 08



  1. How to weld the 12p welding wire to Volvo meter and connect to CG100 III.

Click on “Instrument -> European car series -> Volvo”.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 09 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 10

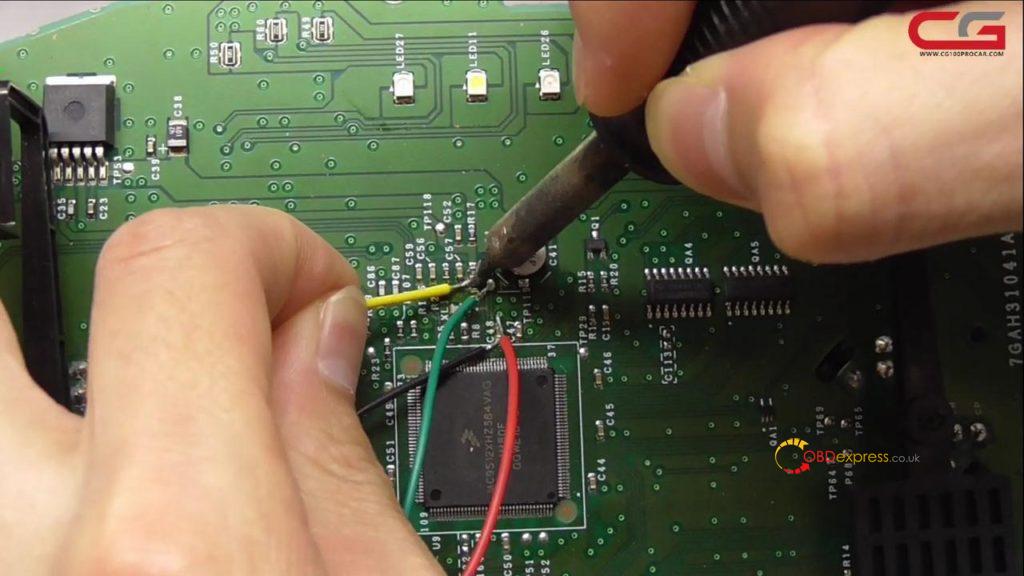

You need to weld 4 wires according to the diagram.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 11 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 12 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 13



Connect the 12p welding wire to the BDM+4 adapter, and then to CG100 III hardware.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 14



  1. Volvo models perform mileage adjustment, both eeprom and flash need to be processed.

1). Firstly process the EEPROM data.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 15 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 16 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 17 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 18



Please enter the target kilometers (KM).

The software will automatically calculate the original mileage, we can enter the required mileage.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 19 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 20



2) Back to process the FLASH data next.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 21 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 22 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 23

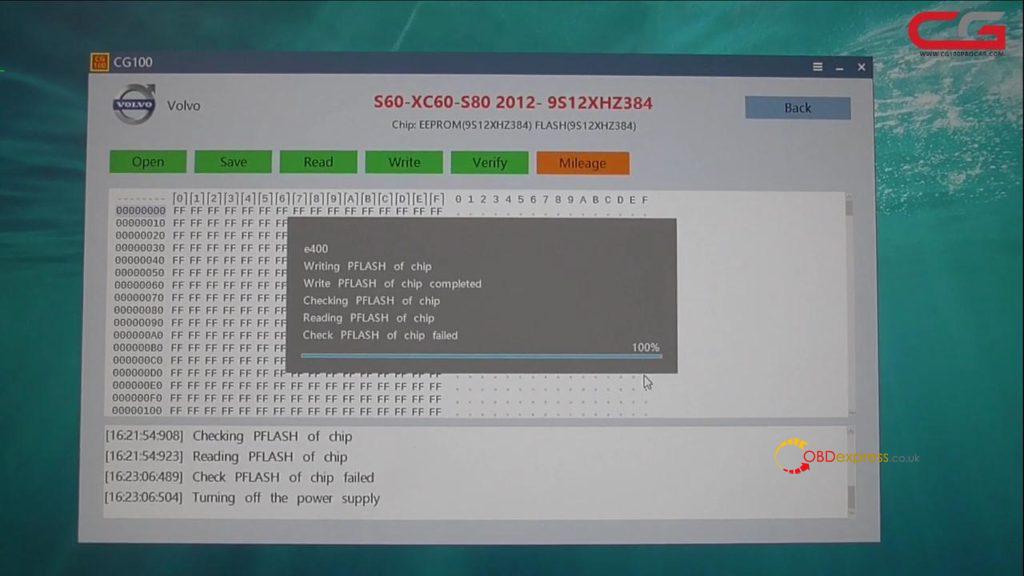

No need to enter any numbers, the software operates automatically.

It will take several minutes, please wait patiently.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 24 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 25



4.Flash data is also processed, and the welding line can be removed.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 26 Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 27



  1. The wiring is removed, we need to install the previously removed parts and screws.

Cg100 Iii Volvo S60 Xc60 S80 Mileage Adjust 28

Done.

CG100 PROG III adjust mileage for Volvo S60 XC60 S80 successfully.
