Will Digimaster 3 correct odometer for 2010 Lincoln MKZ?

Confirmed that Digimaster III  can correct odometer for a 2010 Lincoln MKZ.



Procedure:

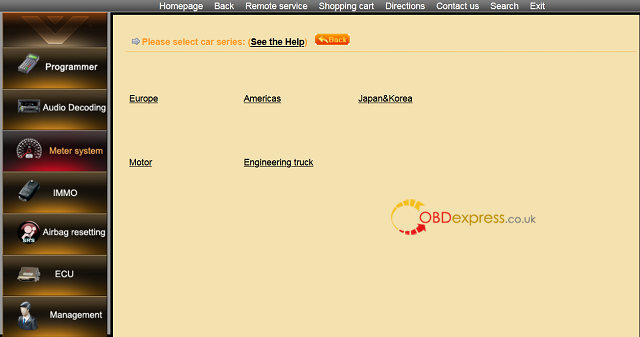

Select “Meter system”, then “Americas”.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 01

Select “Lincoln”.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 02



Select “MKT”.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 03



Select “93C86”.



Digimaster 3 2010 Lincoln Mkz Odometer Correction 04

Remove the 93C86 chip from the dashboard, then weld it on the OBP adapter, connect the OBP adapter to the D3 main unit, read the original mileage value, write a new value.



Please follow the next steps to weld the IC.

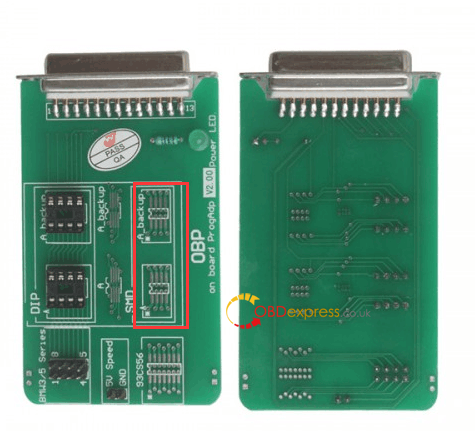

This is OBP adapter.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 05

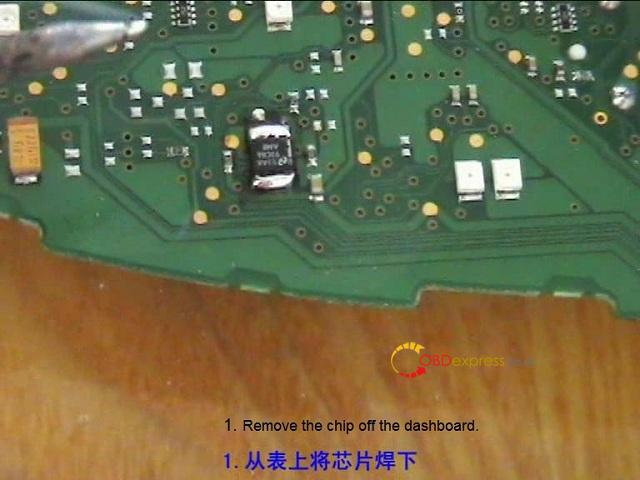

Remove the chip off the dashboard.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 06



Remove the excess tin on the IC.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 07

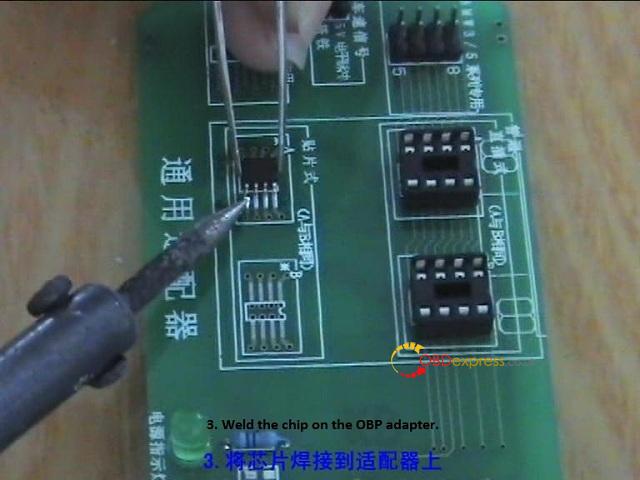

Weld the chip on the OBP adapter packed in the Digimaster 3.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 08



Solder the chip off the adapter.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 09



Solder the chip back onto the adapter.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 10



Use banana oil to clean the chip that was solder back onto the adapter.

Digimaster 3 2010 Lincoln Mkz Odometer Correction 11 Digimaster 3 2010 Lincoln Mkz Odometer Correction 12



Enjoy!
