OBDSTAR PD plus / ODOmaster is a decent Peugeot Citroen mileage programmer via OBD. Its operation is friendly because it comes with a help file, images, and tips. This article is available with the using guide and vehicle coverage.
Part 1. obdstar X300 dp plus Peugeot Citroen mileage programming coverage

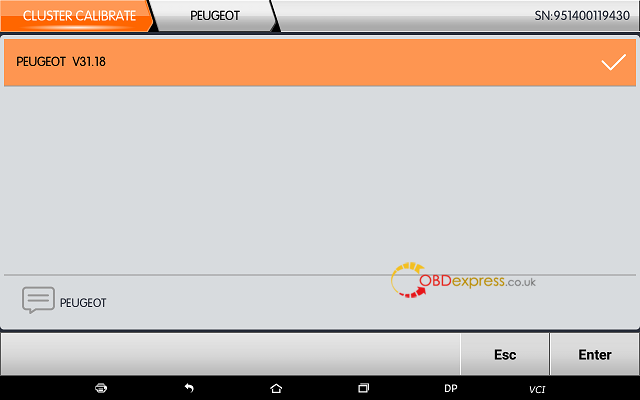

- Peugeot coverage (both OBDSTAR key master plus and ODO Master are the same)

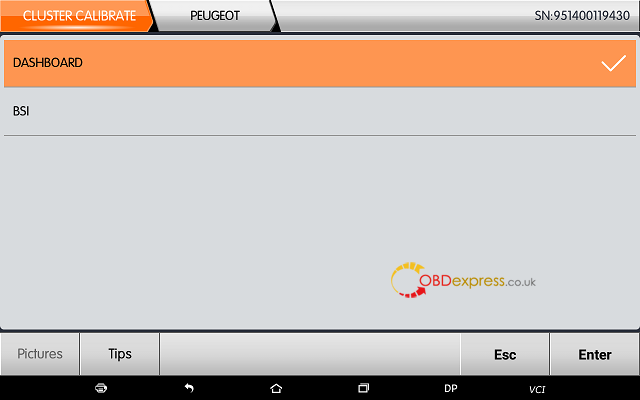

Dashboard or BSI.

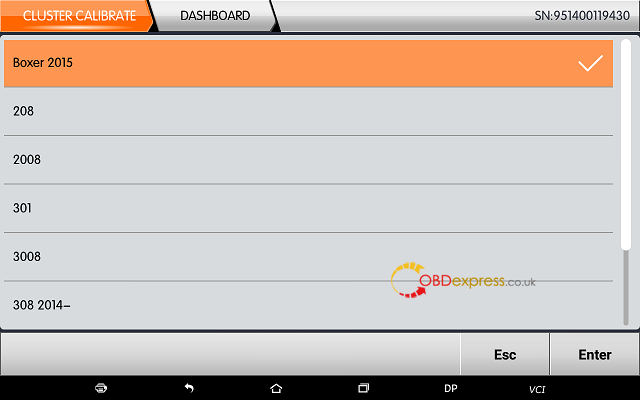

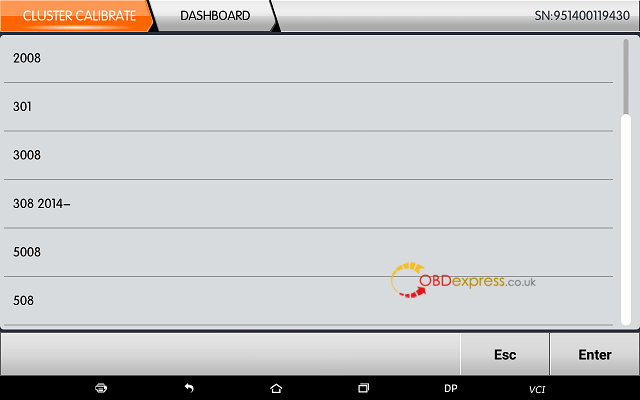

- Peugeot Dashboard coverage:
Boxer 2015
208
2008
C-ElySee
3008
308 2014-
2008
301
5008
508
- Peugeot BSI coverage
BSI
Auto Select
Manual Select
Continental SC67050 + 95256 CAN (BSI-Q0X-00)
JC easyCAN4F1M-32 + 95128 CAN (BSI04EV-K0X)
JC easyCAN4 + 29LV400BB + 95128 CAN
JC SPC560B60 + 95128 CAN (BSI04EV2-KEX)
SIEMENS 1L00M + 95128/95256 CAN (BSI-S0X)
SIEMENS D76F0018 + 95160 KLINE (BSI-E0X/BSI-F0X)
VALEO SC667152 + 95256 CAN (BSI-N0X)
VALEO 2M48H +24c128 CAN (BSIEV-X0X-00)
VALEO 4L00M + 95128/25128 CAN (BSI2004-P0X-00)
- Citroen coverage (both OBDSTAR X300 DP plus and Odomaster are the same)

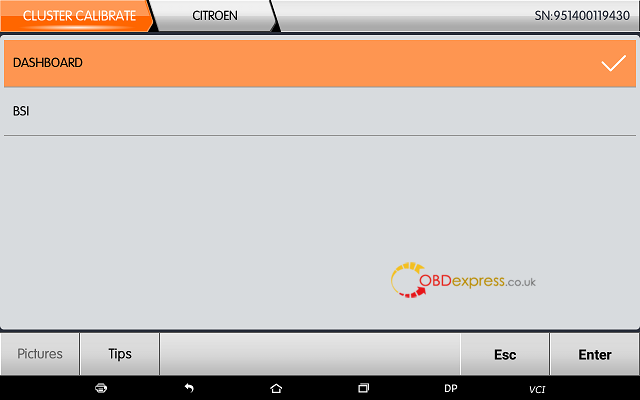

Citroen: dashboard and BSI.
DASHBOARD:
C3 2009

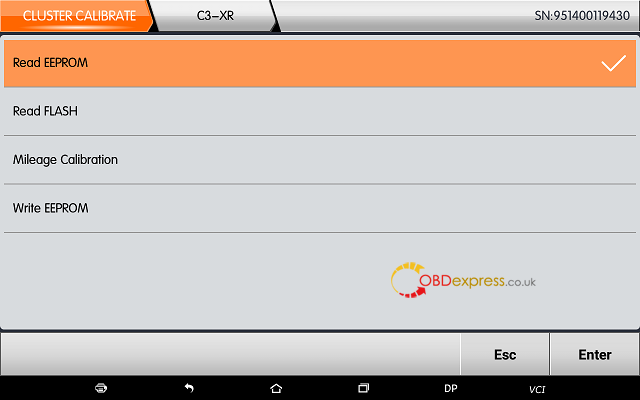

C3-XR
C4 2010-
C4L

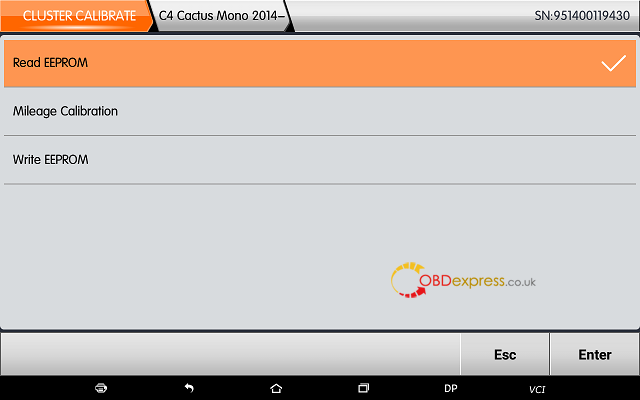

C4 Cactus Mono 2014-
C4 Picasso TFT 2014-
C4 Picasso Mono 2014-
C-Elysee
DS3
DS4
DS5
Jumper 2015

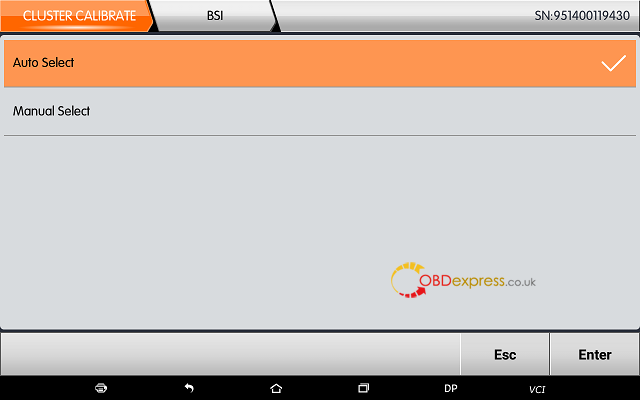

After selecting “BSI” and have options “Auto select” and “Manual select”.
BSI
Auto Select
Manual Select

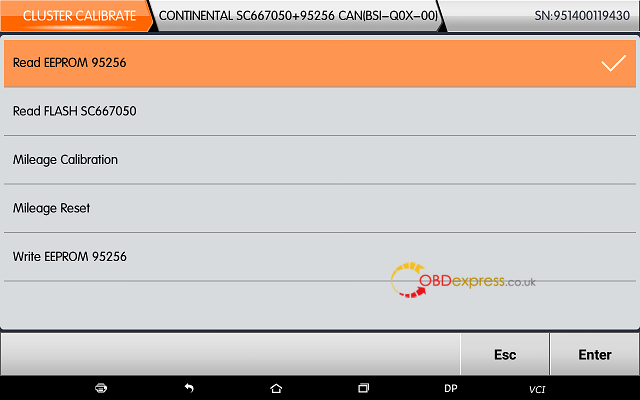

Continental SC67050 + 95256 CAN (BSI-Q0X-00)
JC easyCAN4F1M-32 + 95128 CAN (BSI04EV-K0X)
JC easyCAN4 + 29LV400BB + 95128 CAN
JC SPC560B60 + 95128 CAN (BSI04EV2-KEX)

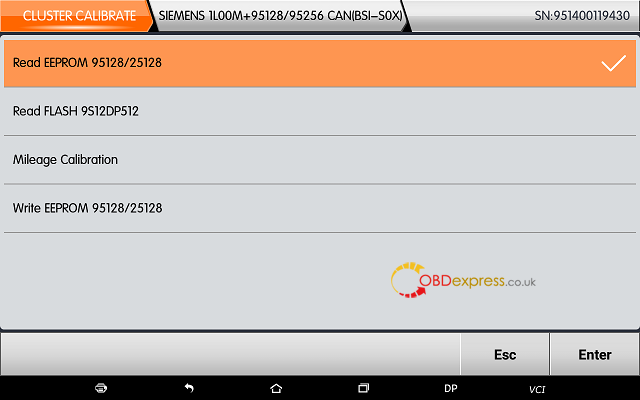

SIEMENS 1L00M + 95128/95256 CAN (BSI-S0X)

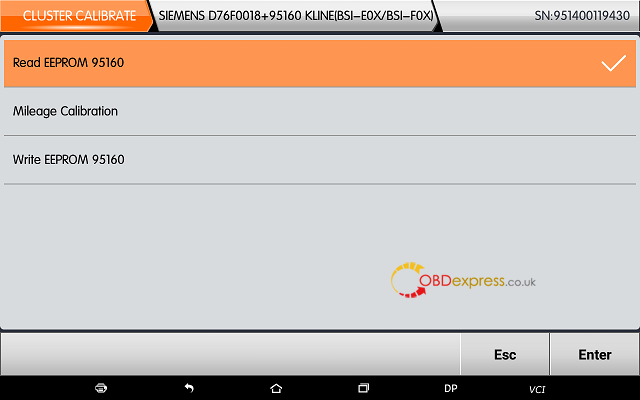

SIEMENS D76F0018 + 95160 KLINE (BSI-E0X/BSI-F0X)

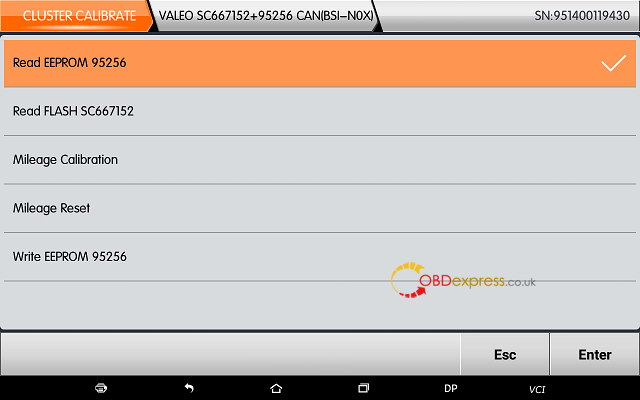

VALEO SC667152 + 95256 CAN (BSI-N0X)
VALEO 2M48H +24c128 CAN (BSIEV-X0X-00)

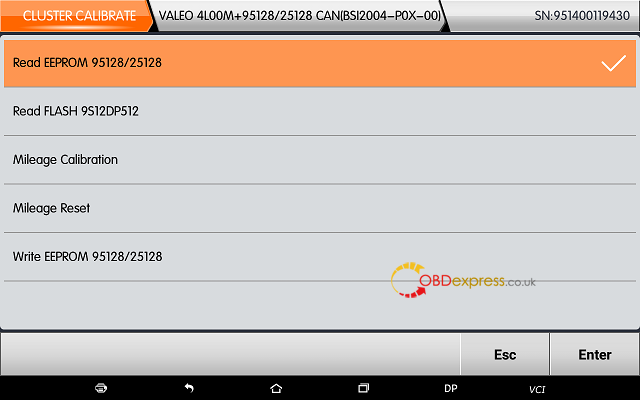

VALEO 4L00M + 95128/25128 CAN (BSI2004-P0X-00)

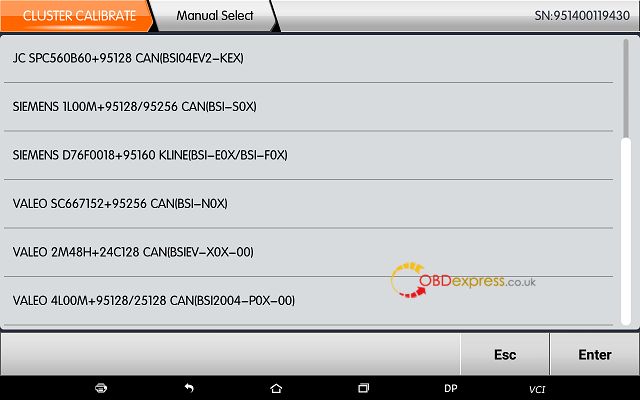

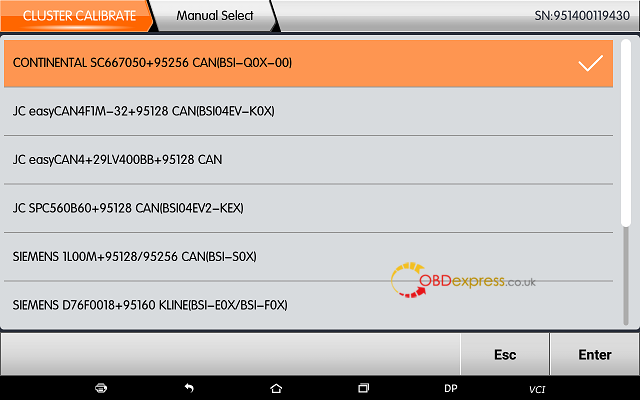

Enter “Manual select”.
Part 2: OBDSTAR PSA Dashboard and BSI mileage correction using guide

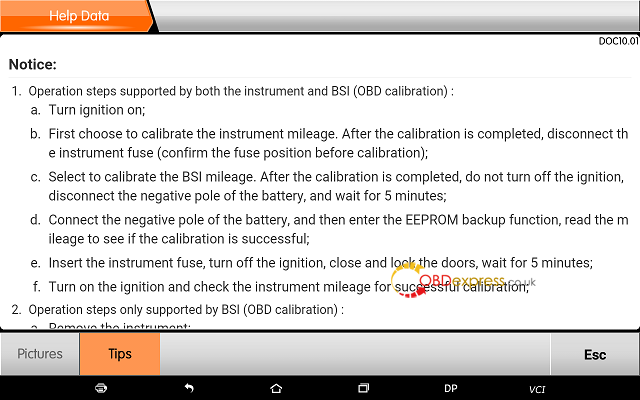

Follow the OBD calibration steps.

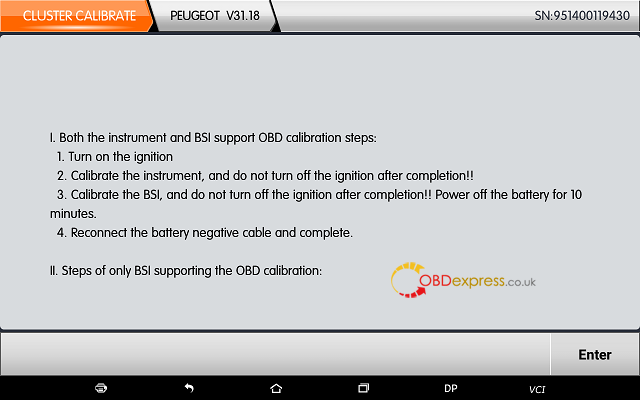

- Both the instrument and BSI support OBD calibration steps:
1.Turn on the ignition
- Calibrate the instrument, and do not turn off the ignition after completion
- Calibrate the BSI, and do not turn off the ignition after completion!! Power off the battery for 10 minutes
- Reconnect the battery negative cable and complete
- Steps of only BSI supporting the OBD calibration:
- Remove the instrument and use the programmer to calibrate it
- Turn on the ignition and calibrate the BSI. Do not turn off the ignition after completion!! Power
off the battery for 10 minutes. - Put the instrument back into the vehicle
- Reconnect the battery negative cable and complete

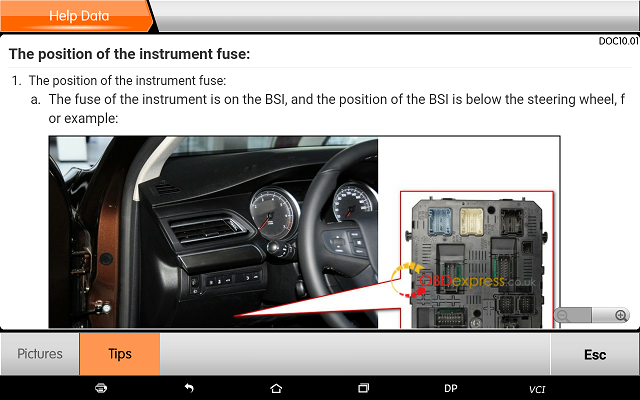

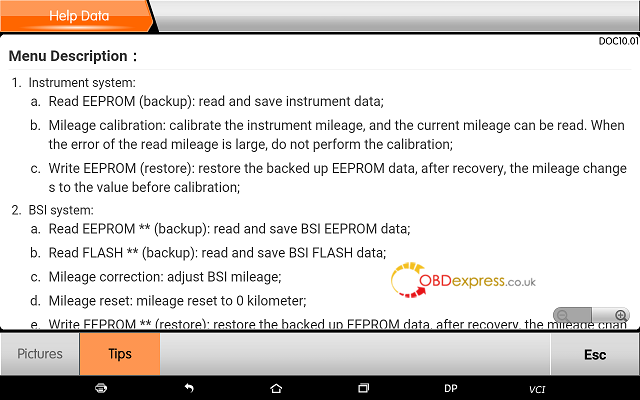

Tips:
Enjoy.
