CANEMU CAN filter connection manual for Renault Laguna III

Here is CANEMU CAN Filter 3-in-1 Emulator connection manual for Renault Laguna III
Remove instrument cluster and change mileage in 24C16 EEPROM.
CANEMU CAN filter connection manual for Renault Laguna III-1

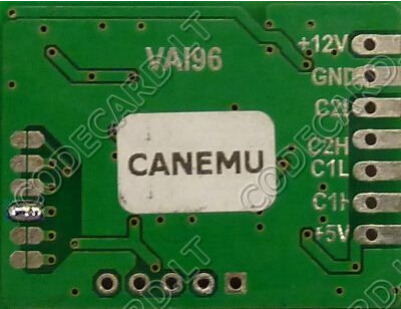

For first prepare CANEMU board: solder 3 configuration point. Use fine KYNAR wire for installation.
CANEMU CAN filter connection manual for Renault Laguna III-2

CANEMU CAN filter connection manual for Renault Laguna III-3

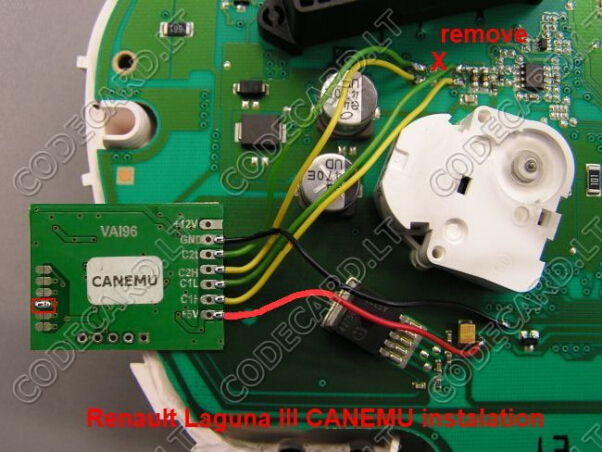

Install CANEMU board like in picture:
CANEMU CAN filter connection manual for Renault Laguna III-4
