What is Mercedes CAN filter used for?

Mercedes CAN filter is designed for Mercedes-Benz W221 W204 W207 W212 W166 and X166 W218 W172 W246 W176 W117 W156 etc. models. These filters block old mileage data from EZS module. If you have installed filter on Mercedes-Benz vehicle in EZS module, then original dealer workshop scanner (like Mercedes Star Diagnosis Multiplexer or Xentry) will show same mileage in EZS as in vehicles instrument cluster. Also works for older vehicles like E-class W211, S-class W220, Sprinter. Mercedes-Benz filter can be installed also in instrument cluster, but in this case in EZS-EIS will stay old odometer mileage value.

Where to get MB CAN Filter wring diagram for Mercedes?

MB CAN Filter on Mercedes C-class W204

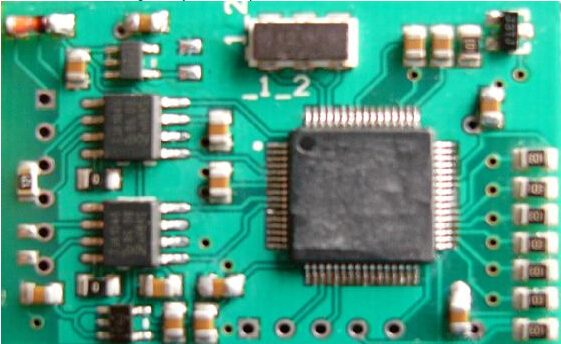

1- prepare Mercedes CAN filter board
check – resistor 121 must be soldered and solder second configuration points like in pictures
mb-can-filter-W204-1
2- Remove EZS board from casing.
Carefully disconnect board from mechanic – look on picture.

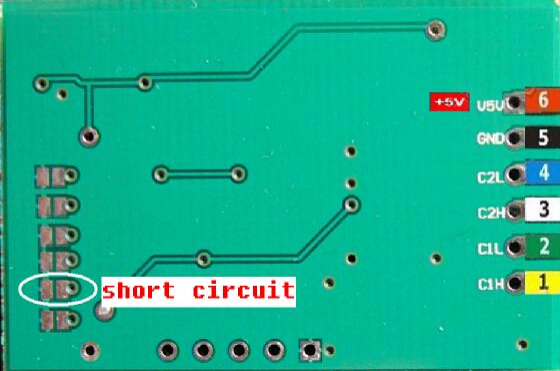

mb-can-filter-W204-2

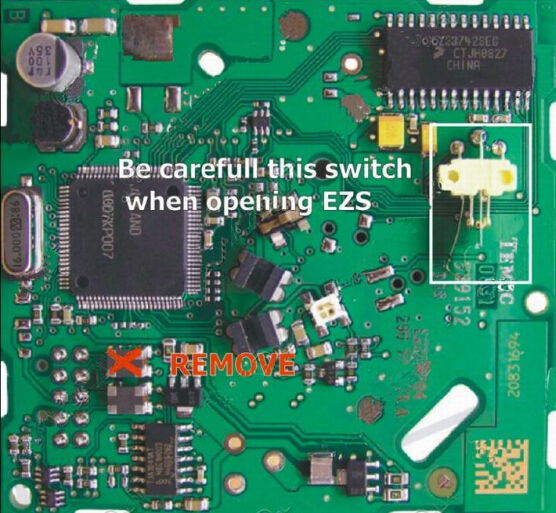

3- Remove from EZS board SMD part marked with red “X”.

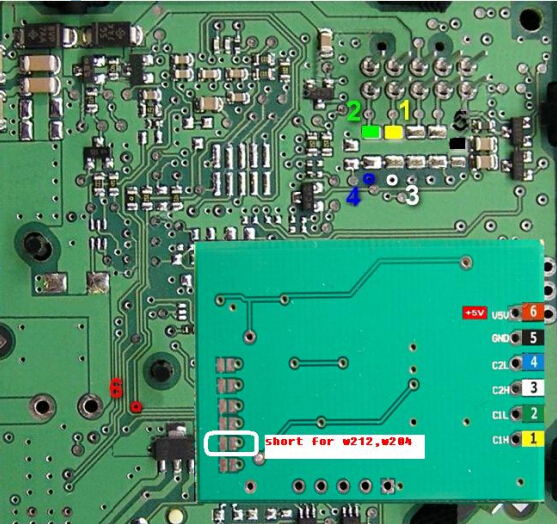

With short, good isolated wire connect Mercedes CAN filter to EZS board according picture: 1-1 (C1H), 2-2(C1L), 3-3(C2H), 4-4(C2L), 5-5(GND), and 6-6 (+5V).
mb-can-filter-W204-3
4- After connection, insulate Mercedes CAN filter board with heat shrink or insulation tape. Put it carefully to EZS casing.
mb-can-filter-W204-4

Mercedes-Benz CAN Filter on Mercedes E-class W212
1- prepare Mercedes CAN filter board:
check – resistor 121 must be soldered and solder second configuration points like in pictures.
mb-can-filter-W212-1

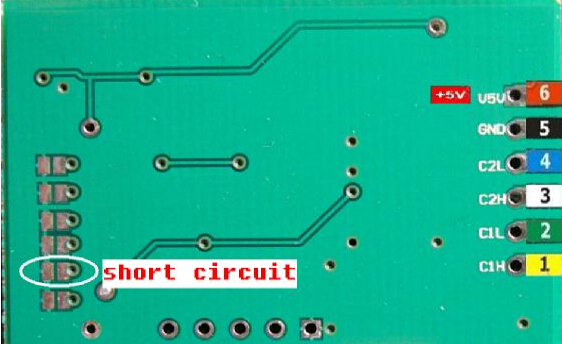

mb-can-filter-W212-2
2- Remove EZS board from casing.
Carefully disconnect board from mechanic – look on picture.
mb-can-filter-W212-3

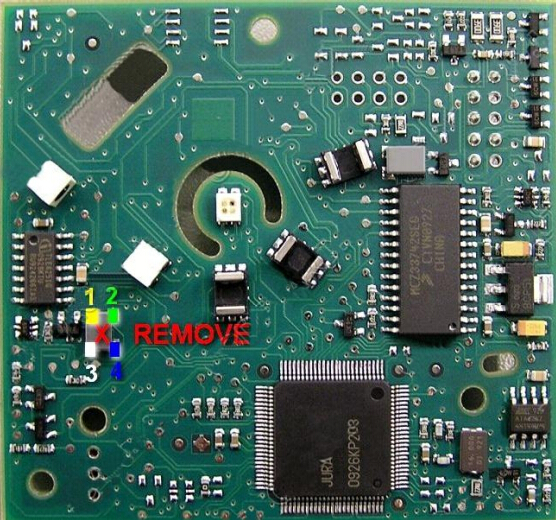

3- Remove from EZS board SMD part marked with red “X”.

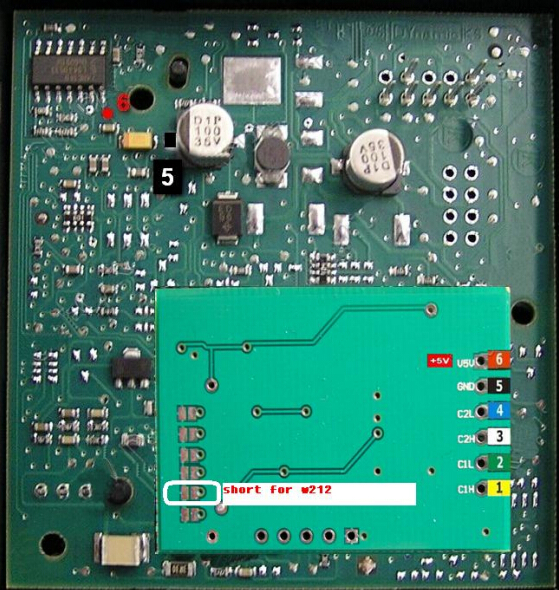

With short, good isolated wire connect Mercedes CAN filter to EZS board according picture: 1-1 (C1H), 2-2(C1L), 3-3(C2H), 4-4(C2L), 5- 5(GND), and 6-6 (+5V).
mb-can-filter-W212-4
4- After connection, insulate Mercedes CAN filter board with heat shrink or insulation tape. Put it carefully to EZS casing.

Mercedes CAN filter wiring diagram reference:
http://obd2-diag.blogspot.com/2016/07/mb-can-filter-wring-diagram-for.html

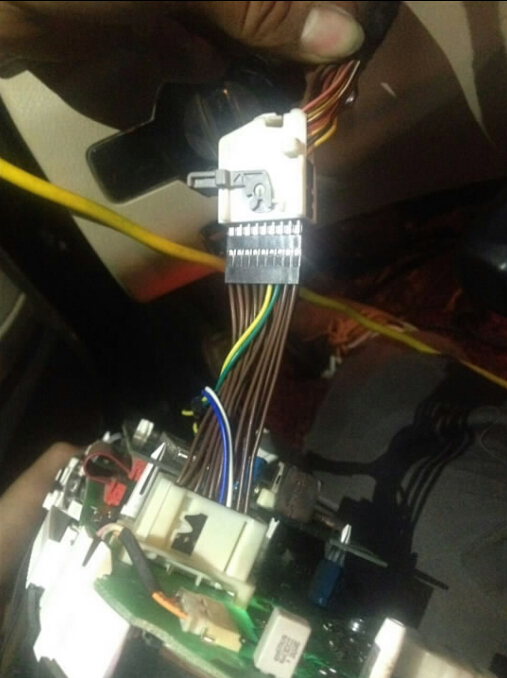

How to use MB CAN FILTER?

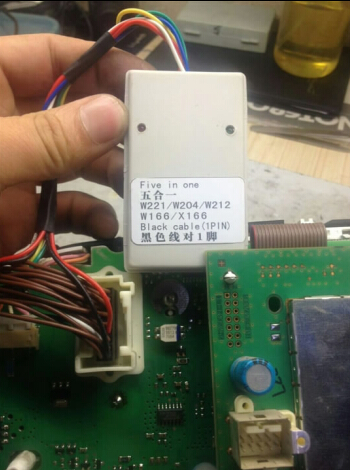

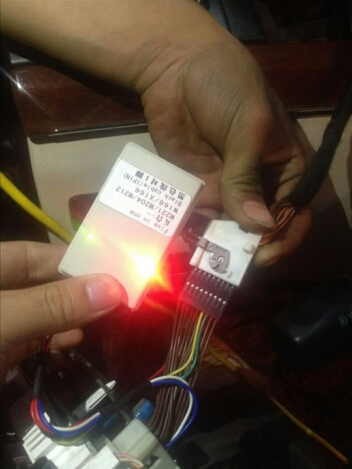

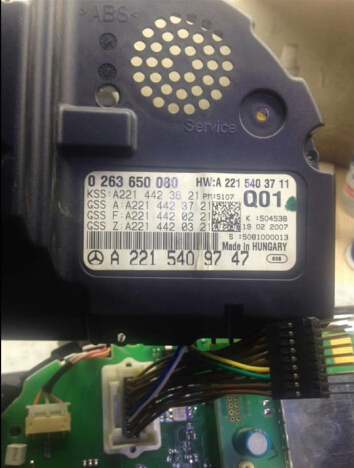

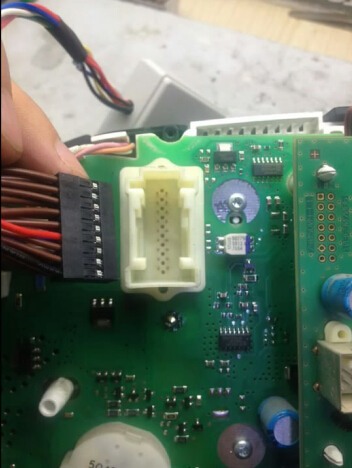

MB-CAN-Filter-8-in-1 (1)

MB-CAN-Filter-8-in-1 (2)

MB-CAN-Filter-8-in-1 (3)

MB-CAN-Filter-8-in-1 (4)

MB-CAN-Filter-8-in-1 (5)

MB-CAN-Filter-8-in-1 (6)

http://www.obdexpress.co.uk/wholesale/yh-mb-can-filter-18-in-1.html

Here add two item more and more popular at obd2express:

SE130

MB CAN Filter 3 in 1 for W222 W217 W205 (New Mercedes Benz S/C series)

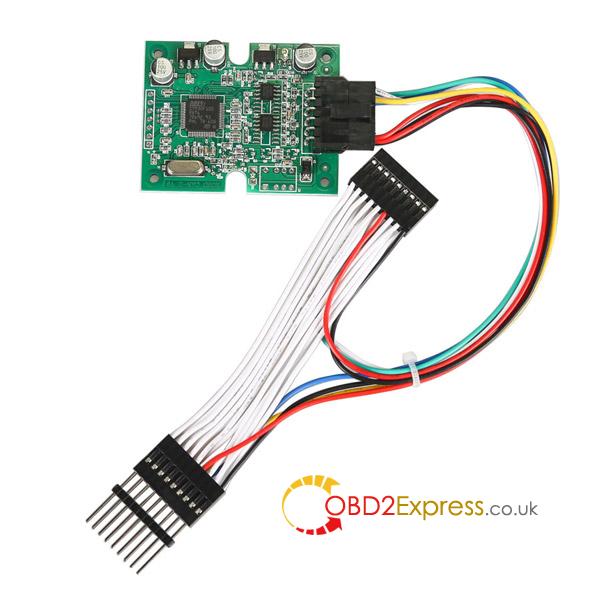

mb-can-filter-new-serie-1
