How CG PRO change mileage from BMW E91 dashboard & CAS 4

Here is how to do BMW E91 dashboard and CAS Odometer Correction tutorial:



BMW Odometer correction tool:

CG PRO programmer for MB BMW LandRover Porsche

Digiprog 3 universal odometer correction tool



You have to know:

For BMW CAS, it’s necessary to correct odometer for both dashboard and CAS.

For BMW EWS, it’s okay to have dashboard odometer correction only.



How-to’s:

Step 1: BMW dashboard V4 (35080 VP/V6) odometer correction

Step 2: BMW CAS4 1L15Y odometer correction



In detail…



Step 1: CG PRO change mileage BMW dashboard V4 (35080 VP/V6)

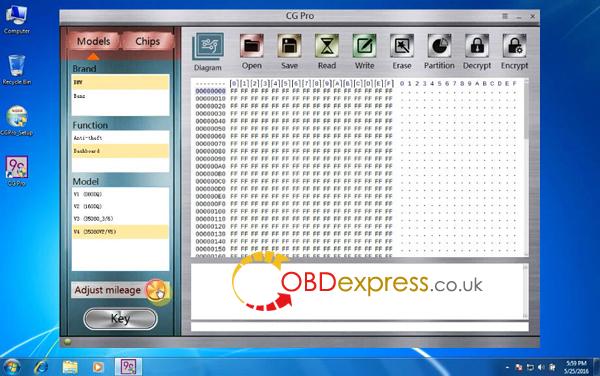

Select a model

Brand: BWM

Function: Dashboard

Model: V4 (35080 VP/V6)

cg-pro-bmw-dashboard-1



Read data



cg-pro-bmw-dashboard-2 cg-pro-bmw-dashboard-3

Successfully read data

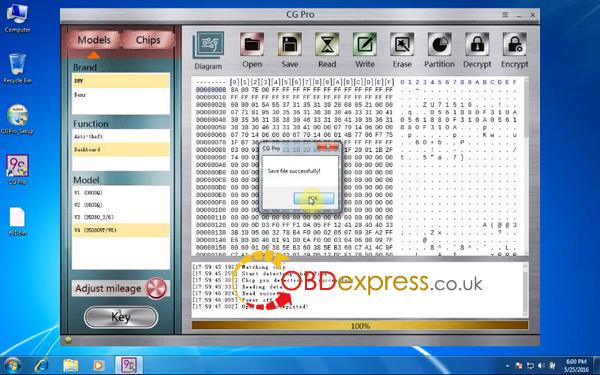

Save file

cg-pro-bmw-dashboard-4 cg-pro-bmw-dashboard-5

Operation completed!

cg-pro-bmw-dashboard-6

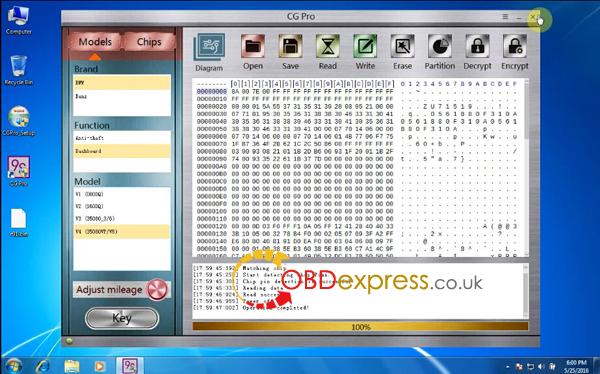

Exit!

cg-pro-bmw-dashboard-7

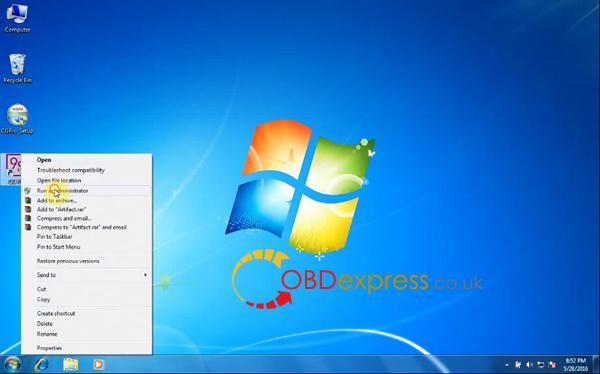

Run CG PRO software as administrator

cg-pro-bmw-dashboard-8

Select a model

Brand: BWM

Function: Dashboard

Model: V4 (35080 VP/V6)

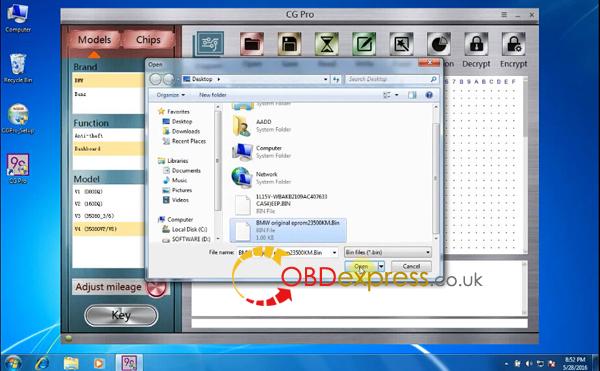

Open file- original eprom bin file

cg-pro-bmw-dashboard-9 cg-pro-bmw-dashboard-10

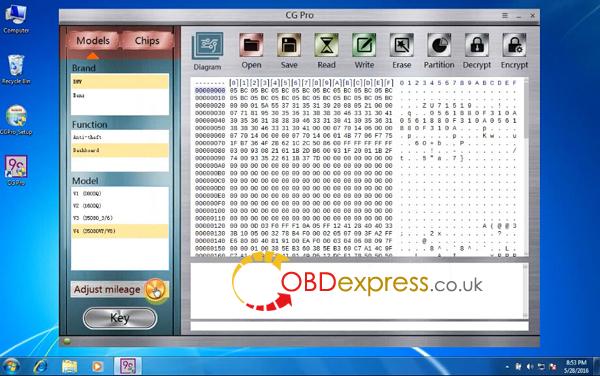

Adjust mileage

cg-pro-bmw-dashboard-11

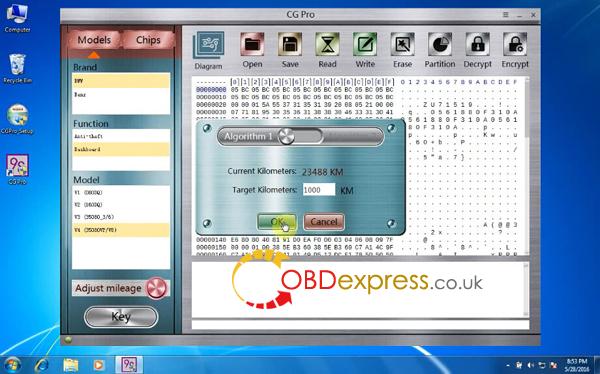

Enter a new km as odometer correction

Here:1000 KM

cg-pro-bmw-dashboard-12



Step 2: CG PRO change mileage BMW CAS4 1L15Y

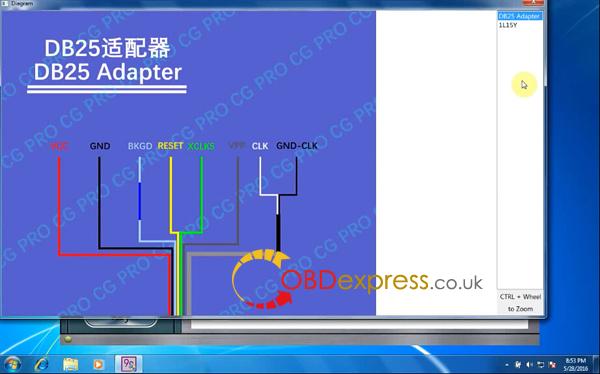

Wiring diagram of DB25 Adapter

cg-pro-bmw-dashboard-13

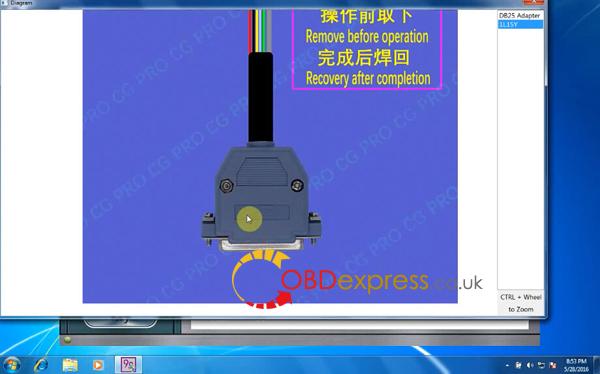

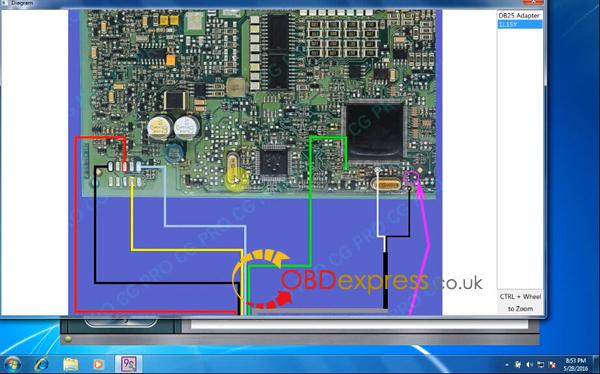

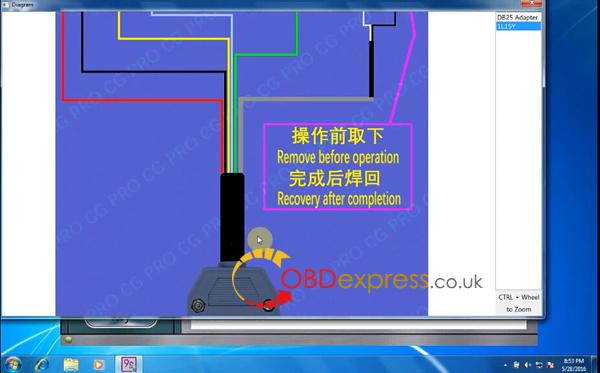

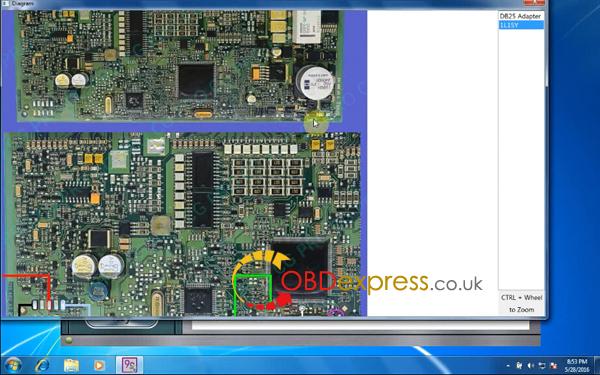

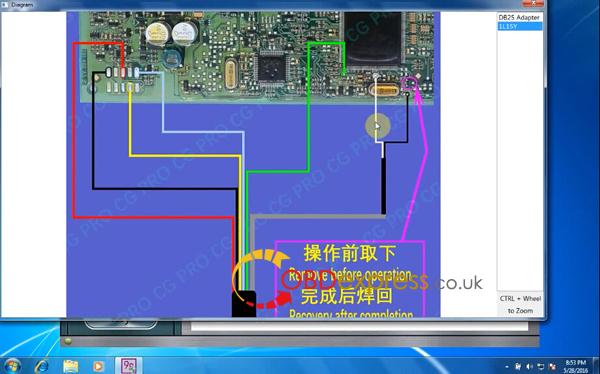

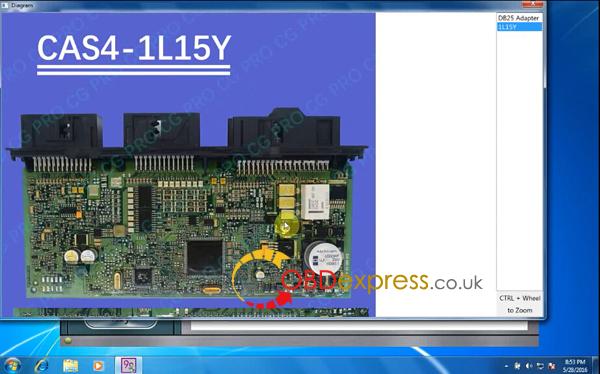

Wiring diagram of CAS4 1L15Y

cg-pro-bmw-dashboard-14 cg-pro-bmw-dashboard-15 cg-pro-bmw-dashboard-16 cg-pro-bmw-dashboard-17 cg-pro-bmw-dashboard-18 cg-pro-bmw-dashboard-19

Close CG PRO wiring diagram



Select a model

Brand: BWM

Function: Anti-theft

Model: CAS4 1L15Y

cg-pro-bmw-dashboard-20

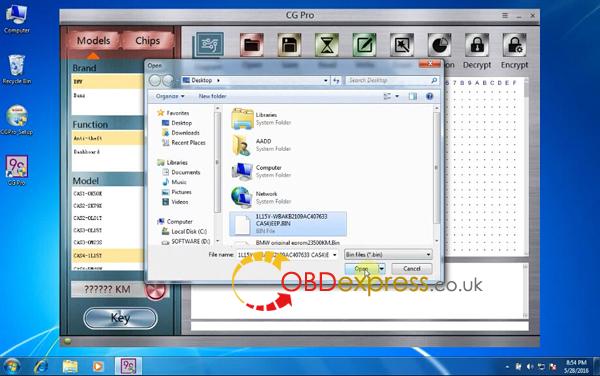

Open file- CAS4 bin file

cg-pro-bmw-dashboard-21

Adjust mileage

cg-pro-bmw-dashboard-22

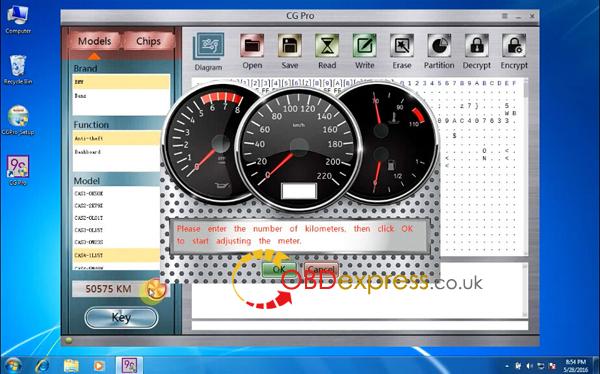

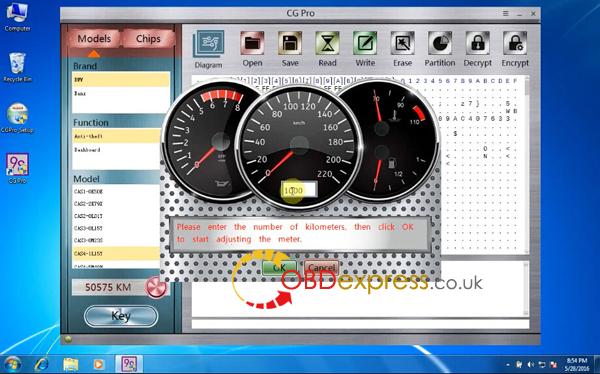

Enter a new km as the new mileage

Here: 1000KM



cg-pro-bmw-dashboard-23 cg-pro-bmw-dashboard-24

Note that, the dashboard mileage should be the same as CAS4 mileage.



Reference: CG PRO User Manual for details.. here you go
